GM-D9701

CEA-2006 CompliantYes

Allowable Load Impedance1 ohm to 8 ohm allowable

Avg Current Consumption (amps x #ch)3.5 A x 1-Channel – 4 Ohm / 7.5 A x 1-Channel – 1 Ohm / 5.1 A x 1-Channel – 2 Ohm

Bass Boost50 Hz – Frequency

Continuous-Power-Output500 W x 1-Channel – 4 Ohm / 1200 W x 1-Channel – 1 Ohm / 800 W x 1-Channel – 2 Ohm

Crossover Network Subwoofer ChannelLPF – 40Hz-240Hz

Crossover Network Subwoofer Slope-12 dB/oct

Frequency Response – Subwoofer Channel10 Hz to 240 Hz

Frequency Response Channel10 Hz to 50 kHz (+0dB,-3dB) A/B Ch

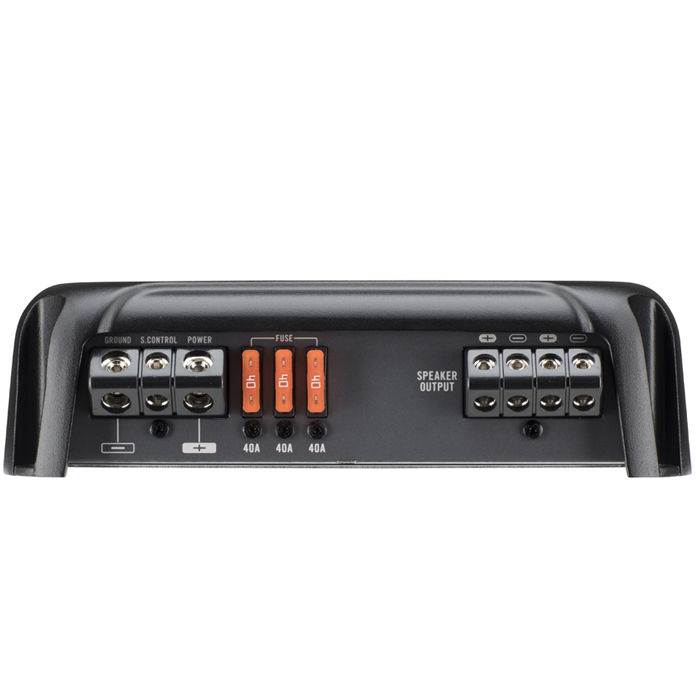

Fuse Rating40A x 3

Maximum Power Output1000 W x 1-Channel (4 Ohm) / 2400 W x 1-Channel (1 ohm)

Input Level @Gain Max200 mV to 6.5 V – RCA / 0.8 V to 16 V – Speaker

RCA Input2-Channel

Signal to Noise75 dBA (Reference: 1 W into 4 ohm)

Speaker Line input SensorYes

THD – Subwoofer=/< 1% ( 20 Hz to 240 Hz)

Bass Boost RemoteYes

ClassD

Grounding SystemNegative

Power Source14.4V (10.8 V to 15.1 V allowable)

Protection Control systemYes

Terminal TypeBlock

Unit Weight6 lbs
